V-GEN Turbo Series Micro SD Micro SD [16 GB/ 100 Mbps / Non Adapter]
cctv
May 28, 2025
Rp54.750.000

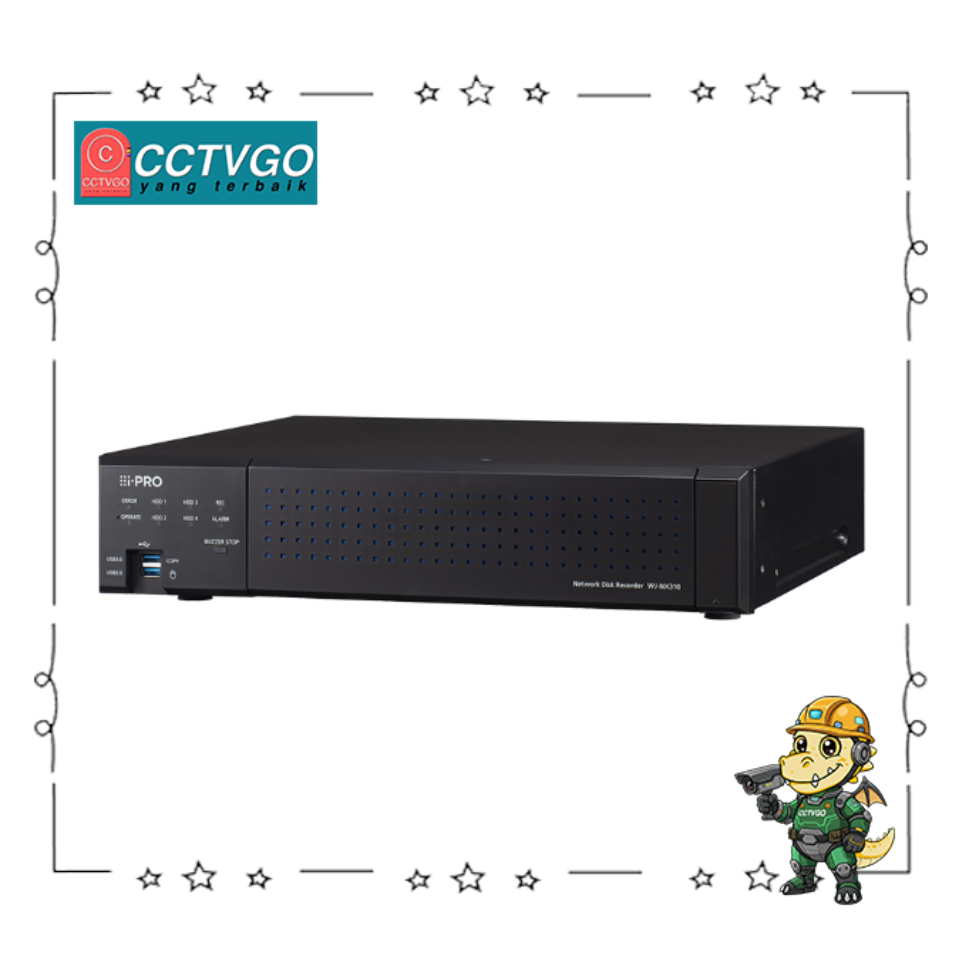

16/24/32ch H.265 NVR
16/24/32ch H.265 NVR
| COMPONENT | SPECIFICATION |
|---|---|
| Compatible Vendor | Panasonic i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
| Supported Image Format | H.265(HEVC), H.264, JPEG |
| Supported Image Resolution | •Aspect ratio [4 : 3] 3,072×2,304, 2,560×1,920, 2,048×1,536, 1,600×1,200, 1280×960, 800×600, 640×480 •Aspect ratio [16 : 9] 3,840×2,160, 3,328×1,872, 3,072×1,728, 2,688×1,520, 2560×1440, 1920×1080, 1280×720, 640×360 •Aspect ratio [1 : 1] 2992×2992, 2816×2816, 2,192×2,192, 2048×2048, 1,440×1,440, 1280×1280, 1,200×1,200 •Aspect ratio [9 : 16] 2,160×3,840, 1,872×3,328, 1,728×3,072, 1,520×2,688, 1,440×2,560, 1,080×1,920, 720×1,280, 360×640 |
| Supported Audio Format | AAC-LC, G.711(for ONVIF) |
| Maximum Number of Cameras | Max. 32 (Default number of cameras : 16) |
| COMPONENT | SPECIFICATION |
|---|---|
| Recording Mode | Event, Schedule, Emergency, Pre-event recording |
| Pre-Alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 4 Mbps |
| Sub-Stream Recording | – |
| Scheduled Recording Mode | 16 programs, 6 time zones/day, Independent setup for each day of the week |
| Frame Rate | Up to 60 fps (Depending on the camera) |
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638), Active ClearSight |
| Multiscreen Mode | [Main monitor] Control screen: 4 / 9 / 16 split screen display Wide view screen: 2 / 3 / 4 / 5 / 6 / 7 / 9 / 12 / 16 / 24 / 32 split screen display, 1 screen sequence, 4 / 9 / 16 split screen sequence [Sub monitor] |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s), Time-saving playback |
| Search Mode | Search criteria : Time date, Playback by designating a timeline, Thumbnail |
| Copy | File Format: Original Format / MP4 Recorded data of selected cameras and time date range can be copied to USB storage. |
| Camera Title | Up to 16 Characters |
| Clock Display | Time : 12H/24H, Date : 5 formats |
| Digital Zoom | Live / Play: 1.25x 1.5x 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| System Setup Language | Setup page in English, French, Italian, Spanish, German, Portuguese, Thai, Vietnamese, Simplified Chinese, Traditional Chinese, Japanese |
| 360 Camera Dewarp | Only 1ch display mode Display : 1-Screen PTZ / 4-Screen PTZ |
| Re-Encoding | 2 clients |
| SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
| User Registration | Up to 32 users |
| User Level | 3 levels (Programmable) |
| Partitioning | User level – Camera (View & Control, View Only, No Access) |
| Security Method | User authentication (ID and Password), Host authentication, SSL/TLS, Data encryption (Only when using Secure communication kit) |
